RLF系列過濾器安裝在液壓系統回油管路處,用來清除油液中諸元件磨損的金屬粉末及橡膠質等,使流回油箱中的油液保持清潔該過濾器的濾芯采用化纖過濾材質,具有過濾精度高,通油能力大,初始壓力損失小,納污量大等優點,并裝有壓差發訊器及旁通閥.當濾芯堵塞到進出油口壓差為0.35MPa時，便發出開關信號，此時應更換濾芯；如果不能馬上停機或無人來更換濾芯，裝在濾芯上部的旁通閥會自動開啟，以保護系統。



技術參數

型號	公稱流量(L/min)	過濾精度(μm)	通徑(mm)	公稱壓力(MPa)	壓力損失loss(MPa)		旁通閥開啟壓力（Mpa)	發訊裝置功率	重量(kg)	濾芯型號
					Initial	Max.
RLF-60*P	60	1 3 5 10 20 30	25	1.6	0.2	0.35	0.4	24V/48W 220V/50W	3.7	SFX-60*
RLF-110*P	110								4.2	SFX-110*
RLF-160*P	160		40						6.8	SFX-160*
RLF-240*P	240								7.5	SFX-240*
RLF-330*P	330		50						10.2	SFX-330*
RLF-500*P	500								11.3	SFX-500*
RLF-660*P	660		80						24.4	SFX-660*
RLF-850*P	850								26	SFX-850*
RLF-950*P	950		100						34.1	SFX-950*
RLF-1300*P	1300								38.8	SFX-1300*

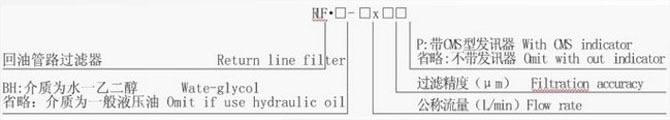

 注：*為過濾精度。若使用介質為水一乙二醇，使用壓力1.6MPa、公稱流量60L/min、過濾精度10μm、帶發訊器。則過濾器型號為RLF ·BH-H6010p,濾芯型號為SFX· BH-6010.
